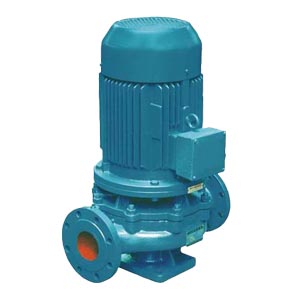

一、产品概述
采用IS型离心泵和SG型管道泵之性能参数,在一般立式管道泵的基础上进行巧妙组合设计而成,同时根据使用温度、介质等不同在ISG型系列管道泵的基础上派生出适用热水管道泵、高温耐腐蚀化工管道泵、管道油泵。该系列产品具有高 效节能、噪音低、性能可靠等优点。
二、产品特点
1、管道离心泵为立式结构,进出口口径相同,且位于同一中 心线上,可象阀门一样安装于管路之中,外形紧凑美观,占地面积小,建筑投入低,如加上防护罩则可置于户外使用。
2、管道离心泵叶轮直接安装在电机的长轴上,轴向尺寸短,结构紧凑,泵与电机轴承配置合理,能有效地平衡泵运转产生的径向和轴向负荷,从而保证了泵的运行平稳,振动小、噪音低。
3、管道离心泵轴封采用机械密封或机械密封组合,采用进口钛合金密封环、中型耐高温机械密封和采用硬质合金材料,耐磨密封,能有效地延长机械密封的使用寿命。
4、管道离心泵安装检修方便,无需拆动管路系统,只要卸下泵联体座螺母即可抽出全部转子部件。
5、管道离心泵可根据使用要求即流量和扬程的需要采用泵的串、并联运用方式。
6、管道离心泵可根据管路布置的要求采用泵的竖式和横式安装。
三、主要用途
ISG型立式管道泵,供输送清水及物理化学性质类似于清水的其他液体之用,适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套, 使用温度T<80℃。
四、型号意义
五、参数表
型号 | 流量 | 扬程 | 功率 | 电压 | ||
m3/h | m | kw | v | |||
15-80 | 1.5 | 8 | 0.18-2 | 220 | ||
20-110 | 2.5 | 15 | 0.37-2 | 220/380 | ||
20-125 | 2.5 | 20 | 0.75-2 | 200/380 | ||
20-160 | 2.5 | 32 | 1.1-2 | 220/380 | ||
25-110 | 4 | 15 | 0.75-2 | 220/380 | ||
25-125 | 4 | 20 | 0.75-2 | 220/380 | ||
25-125A | 3.6 | 16 | 0.75-2 | 220/380 | ||
25-160 | 4 | 32 | 1.5-2 | 380 | ||
25-160A | 3.7 | 28 | 1.1-2 | 380 | ||
32-100 | 4.5 | 12.5 | 0.55-2 | 220/380 | ||
32-125 | 5 | 20 | 0.75-2 | 220/380 | ||
32-125A | 4.5 | 16 | 0.75-2 | 220/380 | ||
32-160 | 5 | 32 | 1.5-2 | 380 | ||
32-160A | 4.5 | 25 | 1.1-2 | 380 | ||
32-160(I) | 6.3 | 32 | 2.2-2 | 380 | ||
32-200 | 5 | 50 | 3-2 | 380 | ||
32-200A | 4.5 | 44 | 2.2-2 | 380 | ||
32-200B | 3.5 | 38 | 1.5-2 | 380 | ||
32-200(I) | 6.3 | 50 | 4-2 | 380 | ||
40-100 | 6.3 | 12.5 | 0.75-2 | 220/380 | ||
40-100A | 5.6 | 10 | 0.75-2 | 220/380 | ||
40-125 | 6.3 | 20 | 1.1-2 | 220/380 | ||
40-125A | 5.6 | 16 | 0.75-2 | 220/380 | ||
40-160 | 6.3 | 32 | 2.2-2 | 380 | ||
40-160A | 5.9 | 28 | 1.5-2 | 380 | ||
40-160B | 5.5 | 24 | 1.1-2 | 380 | ||
40-200 | 6.3 | 50 | 4-2 | 380 | ||
40-200A | 5.9 | 44 | 3-2 | 380 | ||
40-200B | 5.3 | 36 | 2.2-2 | 380 | ||
40-250 | 6.3 | 80 | 7.5-2 | 380 | ||
40-250A | 5.9 | 70 | 5.5-2 | 380 | ||
40-250B | 5.5 | 60 | 4-2 | 380 | ||
40-100(I) | 12.5 | 12.5 | 1.1-2 | 380 | ||
40-100(I)A | 11 | 10 | 0.75-2 | 380 | ||
40-125(I) | 12.5 | 20 | 1.5-2 | 380 | ||
40-125(I)A | 11 | 16 | 1.1-2 | 380 | ||
40-160(I) | 12.5 | 32 | 3-2 | 380 | ||
40-160(I)A | 11.7 | 28 | 2.2-2 | 380 | ||
40-160(I)B | 10.4 | 22 | 1.5-2 | 380 | ||
40-200(I) | 12.5 | 50 | 5.5-2 | 380 | ||
40-200(I)A | 11.7 | 44 | 4-2 | 380 | ||
40-200(I)B | 10.6 | 36 | 3-2 | 380 | ||
40-250(I) | 12.5 | 80 | 11-2 | 380 | ||
40-250(I)A | 11.6 | 70 | 7.5-2 | 380 | ||
40-250(I)B | 10.8 | 60 | 5.5-2 | 380 | ||
40-250 (I) C | 10 | 52 | 5.5-2 | 380 | ||
50-100 | 12.5 | 12.5 | 1.1-2 | 380 | ||
50-100A | 11 | 10 | 0.75-2 | 380 | ||
50-125 | 12.5 | 20 | 1.5-2 | 380 | ||
50-125A | 11 | 16 | 1.1-2 | 380 | ||
50-160 | 12.5 | 32 | 3-2 | 380 | ||
50-160A | 11.7 | 28 | 2.2-2 | 380 | ||
50-160B | 10.4 | 22 | 1.5-2 | 380 | ||
50-200 | 12.5 | 50 | 5.5-2 | 380 | ||
50-200A | 11.7 | 44 | 4-2 | 380 | ||
50-200B | 10.6 | 36 | 3-2 | 380 | ||
50-250 | 12.5 | 80 | 11-2 | 380 | ||
50-250A | 11.6 | 70 | 7.5-2 | 380 | ||
50-250B | 10.8 | 60 | 7.5-2 | 380 | ||
50-250C | 10 | 52 | 5.5-2 | 380 | ||
50-100(I) | 25 | 12.5 | 1.5-2 | 380 | ||
50-100(I)A | 22.3 | 10 | 1.1-2 | 380 | ||
50-125(I) | 25 | 20 | 3-2 | 380 | ||
50-125(I)A | 22.3 | 16 | 2.2-2 | 380 | ||
50-160(I) | 25 | 32 | 4-2 | 380 | ||
50-160(I)A | 23.4 | 28 | 3-2 | 380 | ||
50-160(I)B | 21.6 | 24 | 2.2-2 | 380 | ||
50-200(I) | 25 | 50 | 7.5-2 | 380 | ||
50-200(I)A | 23.5 | 44 | 5.5-2 | 380 | ||
50-200(I)B | 21.8 | 38 | 4-2 | 380 | ||
50-250(I) | 25 | 80 | 15-2 | 380 | ||
50-250(I)A | 23.4 | 70 | 11-2 | 380 | ||
50-250(I)B | 21.6 | 60 | 7.5-2 | 380 | ||
50-315(I) | 25 | 125 | 30-2 | 380 | ||
50-315(I)A | 23.7 | 113 | 22-2 | 380 | ||
50-315(I)B | 22.5 | 101 | 18.5-2 | 380 | ||
50-315(I)C | 20.6 | 85 | 15-2 | 380 | ||
65-100 | 25 | 12.5 | 1.5-2 | 380 | ||
65-100A | 22.3 | 10 | 1.1-2 | 380 | ||
65-125 | 25 | 20 | 3-2 | 380 | ||
65-125A | 22.3 | 16 | 2.2-2 | 380 | ||
65-160 | 25 | 32 | 4-2 | 380 | ||
65-160A | 23.4 | 28 | 3-2 | 380 | ||
65-160B | 21.6 | 24 | 2.2-2 | 380 | ||
65-200 | 25 | 50 | 7.5-2 | 380 | ||
65-200A | 23.5 | 44 | 5.5-2 | 380 | ||
65-200B | 21.8 | 38 | 4-2 | 380 | ||
65-250 | 25 | 80 | 15-2 | 380 | ||
65-250A | 23.4 | 70 | 11-2 | 380 | ||
65-250B | 21.6 | 60 | 7.5-2 | 380 | ||
65-315 | 25 | 125 | 30-2 | 380 | ||
65-315A | 23.7 | 113 | 22-2 | 380 | ||
65-315B | 22.5 | 101 | 18.5-2 | 380 | ||
65-315C | 20.6 | 85 | 15-2 | 380 | ||
65-100(I) | 50 | 12.5 | 3-2 | 380 | ||
65-100(I)A | 44.7 | 10 | 2.2-2 | 380 | ||
65-125(I) | 50 | 20 | 5.5-2 | 380 | ||
65-125(I)A | 45 | 16 | 4-2 | 380 | ||
65-160(I) | 50 | 32 | 7.5-2 | 380 | ||
65-160(I)A | 46.7 | 28 | 5.5-2 | 380 | ||
65-160(I)B | 43.3 | 24 | 4-2 | 380 | ||
65-200(I) | 50 | 50 | 15-2 | 380 | ||
65-200(I)A | 47 | 44 | 11-2 | 380 | ||
65-200(I)B | 43.5 | 38 | 7.5-2 | 380 | ||
65-250(I) | 50 | 80 | 22-2 | 380 | ||
65-250(I)A | 46.7 | 70 | 18.5-2 | 380 | ||
65-250(I)B | 43.3 | 60 | 15-2 | 380 | ||
65-315(I) | 50 | 125 | 37-2 | 380 | ||
65-315(I)A | 46.5 | 110 | 30-2 | 380 | ||
65-315(I)B | 44.5 | 100 | 30-2 | 380 | ||
65-315(I)C | 41 | 85 | 22-2 | 380 | ||
80-100 | 50 | 12.5 | 3-2 | 380 | ||
80-100A | 44.7 | 10 | 2.2-2 | 380 | ||
80-125 | 50 | 20 | 5.5-2 | 380 | ||
80-125A | 45 | 16 | 4-2 | 380 | ||
80-160 | 50 | 32 | 7.5-2 | 380 | ||
80-160A | 46.7 | 28 | 5.5-2 | 380 | ||
80-160B | 43.3 | 24 | 4-2 | 380 | ||
80-200 | 50 | 50 | 15-2 | 380 | ||
80-200A | 47 | 44 | 11-2 | 380 | ||
80-200B | 43.5 | 38 | 7.5-2 | 380 | ||
80-250 | 50 | 80 | 22-2 | 380 | ||
80-250A | 46.7 | 70 | 18.5-2 | 380 | ||
80-250B | 43.3 | 60 | 15-2 | 380 | ||
80-315 | 50 | 125 | 37-2 | 380 | ||
80-315A | 46.5 | 110 | 30-2 | 380 | ||
80-315B | 44.5 | 100 | 30-2 | 380 | ||
80-315C | 41 | 85 | 22-2 | 380 | ||
80-100(I) | 100 | 12.5 | 5.5-2 | 380 | ||
80-100(I)A | 89 | 10 | 4-2 | 380 | ||
80-125(I) | 100 | 20 | 11-2 | 380 | ||
80-125(I)A | 89 | 16 | 7.5-2 | 380 | ||
80-160(I) | 100 | 32 | 15-2 | 380 | ||
80-160(I)A | 93.5 | 28 | 11-2 | 380 | ||
80-160(I)B | 86.6 | 24 | 7.5-2 | 380 | ||
80-200(I) | 100 | 50 | 22-2 | 380 | ||
80-200(I)A | 93.5 | 44 | 18.5-2 | 380 | ||
80-200(I)B | 87 | 38 | 15-2 | 380 | ||
80-200(I) | 100 | 50 | 22-2 | 380 | ||
80-250(I) | 100 | 80 | 37-2 | 380 | ||
80-250(I)A | 93.5 | 70 | 30-2 | 380 | ||
80-250(I)B | 87 | 60 | 30-2 | 380 | ||
80-315(I) | 100 | 125 | 75-2 | 380 | ||
80-315(I)A | 95 | 113 | 55-2 | 380 | ||
80-315(I)B | 90 | 101 | 45-2 | 380 | ||
80-315(I)C | 82 | 85 | 37-2 | 380 | ||
100-100 | 100 | 12.5 | 5.5-2 | 380 | ||
100-100A | 89 | 10 | 4-2 | 380 | ||
100-125 | 100 | 20 | 11-2 | 380 | ||
100-125A | 89 | 16 | 7.5-2 | 380 | ||
100-160 | 100 | 32 | 15-2 | 380 | ||
100-160A | 93.5 | 28 | 11-2 | 380 | ||
100-160B | 86.6 | 24 | 7.5-2 | 380 | ||
100-200 | 100 | 50 | 22-2 | 380 | ||
100-200A | 93.5 | 44 | 18.5-2 | 380 | ||
100-200B | 87 | 38 | 15-2 | 380 | ||
100-250 | 100 | 80 | 37-2 | 380 | ||
100-250A | 93.5 | 70 | 30-2 | 380 | ||
100-250B | 87 | 60 | 30-2 | 380 | ||
100-315 | 100 | 125 | 75-2 | 380 | ||
100-315A | 95 | 113 | 55-2 | 380 | ||
100-315B | 90 | 101 | 45-2 | 380 | ||
100-315C | 82 | 85 | 37-2 | 380 | ||
100-100(I) | 160 | 12.5 | 11-2 | 380 | ||
100-125(I) | 160 | 20 | 15-2 | 380 | ||
100-125(I)A | 140 | 17 | 11-2 | 380 | ||
100-160(I) | 160 | 32 | 22-2 | 380 | ||
100-160(I)A | 140 | 28 | 18.5-2 | 380 | ||
100-200(I) | 160 | 50 | 37-2 | 380 | ||
100-200(I)A | 140 | 45 | 30-2 | 380 | ||
100-200(I)B | 100 | 40 | 22-2 | 380 | ||
100-250(I) | 160 | 80 | 55-2 | 380 | ||
100-250(I)A | 140 | 72 | 45-2 | 380 | ||
100-250(I)B | 100 | 65 | 37-2 | 380 | ||
100-315(I) | 160 | 125 | 90-2 | 380 | ||
100-315(I)A | 140 | 110 | 75-2 | 380 | ||
100-315(I)B | 100 | 100 | 75-2 | 380 | ||
125-100 | 160 | 12.5 | 11-2 | 380 | ||
125-100A | 143 | 10 | 7.5-2 | 380 | ||
125-125 | 160 | 20 | 15-2 | 380 | ||
125-125A | 143 | 16 | 11-2 | 380 | ||
125-160 | 160 | 32 | 22-2 | 380 | ||
125-160A | 150 | 28 | 18.5-2 | 380 | ||
125-160B | 138 | 24 | 15-2 | 380 | ||
125-200 | 160 | 50 | 37-2 | 380 | ||
125-200A | 150 | 44 | 30-2 | 380 | ||
125-200B | 138 | 37.5 | 22-2 | 380 | ||
125-250 | 160 | 80 | 55-2 | 380 | ||
125-250A | 150 | 70 | 45-2 | 380 | ||
125-250B | 138 | 60 | 37-2 | 380 | ||
125-315 | 160 | 125 | 90-2 | 380 | ||
125-315A | 150 | 110 | 75-2 | 380 | ||
125-315B | 143 | 100 | 75-2 | 380 | ||
125-315C | 134 | 88 | 55-2 | 380 | ||
150-125 | 160 | 20 | 15-2 | 380 | ||
150-125A | 150 | 16 | 11-2 | 380 | ||
150-160 | 160 | 32 | 22-2 | 380 | ||
150-160A | 150 | 28 | 18.5-2 | 380 | ||
150-160B | 140 | 24 | 15-2 | 380 | ||
150-200 | 200 | 12.5 | 15-4 | 380 | ||
150-200A | 179 | 10 | 11-4 | 380 | ||
150-200B | 160 | 8 | 7.5-4 | 380 | ||
150-250 | 200 | 20 | 18.5-4 | 380 | ||
150-250A | 184.4 | 17 | 15-4 | 380 | ||
150-250B | 167 | 14 | 11-4 | 380 | ||
150-315 | 200 | 32 | 30-4 | 380 | ||
150-315A | 187 | 28 | 22-4 | 380 | ||
150-315B | 173 | 24 | 18.5-4 | 380 | ||
150-400 | 200 | 50 | 45-4 | 380 | ||
150-400A | 187 | 44 | 37-4 | 380 | ||
150-400B | 174 | 38 | 30-4 | 380 | ||
150-400C | 160 | 32 | 22-4 | 380 | ||
150-500 | 200 | 80 | 90-4 | 380 | ||
150-500A | 182 | 70.5 | 75-4 | 380 | ||
150-500B | 166 | 62 | 55-4 | 380 | ||
150-250(I) | 200 | 80 | 75-2 | 380 | ||
150-250(I)A | 187 | 70 | 55-2 | 380 | ||
150-250(I)B | 173 | 60 | 45-2 | 380 | ||
150-315(I) | 200 | 125 | 110-2 | 380 | ||
150-315(I)A | 187 | 110 | 90-2 | 380 | ||
150-315(I)B | 173 | 95 | 75-2 | 380 | ||
200-200 | 200 | 12.5 | 15-4 | 380 | ||
200-200A | 179 | 10 | 11-4 | 380 | ||
200-250 | 200 | 20 | 18.5-4 | 380 | ||
200-250A | 184.4 | 17 | 15-4 | 380 | ||
200-250B | 167 | 14 | 11-4 | 380 | ||
200-315 | 200 | 32 | 30-4 | 380 | ||
200-315A | 189 | 28 | 22-4 | 380 | ||
200-315B | 173 | 24 | 18.5-4 | 380 | ||
200-400 | 200 | 50 | 45-4 | 380 | ||
200-400A | 187 | 44 | 37-4 | 380 | ||
200-400B | 174 | 38 | 30-4 | 380 | ||
200-400C | 160 | 32 | 22-4 | 380 | ||
200-500 | 200 | 80 | 90-4 | 380 | ||
200-500A | 182 | 70.5 | 75-4 | 380 | ||
200-500B | 166 | 62 | 55-4 | 380 | ||
200-200(I ) | 400 | 12.5 | 22-4 | 380 | ||
200-200(I )A | 358 | 10 | 18.5-4 | 380 | ||
200-250(I ) | 400 | 20 | 30-4 | 380 | ||
200-250(I )A | 358 | 16 | 22-4 | 380 | ||
200-250(I )B | 322 | 13 | 18.5-4 | 380 | ||
200-315(I ) | 400 | 32 | 55-4 | 380 | ||
200-315(I )A | 374 | 28 | 45-4 | 380 | ||
200-315(I )B | 346 | 24 | 37-4 | 380 | ||
200-400(I) | 400 | 50 | 75-4 | 380 | ||
200-400(I)A | 374 | 44 | 75-4 | 380 | ||
200-400(I)B | 346 | 38 | 45-4 | 380 | ||
200-400(I)C | 320 | 32 | 45-4 | 380 | ||
200-500(I) | 400 | 80 | 132-4 | 380 | ||
200-500(I)A | 374 | 70 | 110-4 | 380 | ||
200-500(I)B | 346 | 60 | 90-4 | 380 | ||
200-500(I)C | 320 | 50 | 75-4 | 380 | ||
250-250 | 550 | 20 | 45-4 | 380 | ||
250-250A | 500 | 17 | 37-4 | 380 | ||
250-315 | 550 | 32 | 75-4 | 380 | ||
250-315A | 500 | 28 | 55-4 | 380 | ||
250-315B | 450 | 24 | 45-4 | 380 | ||
250-400 | 550 | 50 | 110-4 | 380 | ||
250-400A | 500 | 44 | 90-4 | 380 | ||
250-400B | 460 | 38 | 75-4 | 380 | ||
250-400C | 429 | 31 | 55-4 | 380 | ||
250-500 | 550 | 80 | 185-4 | 380 | ||
250-500A | 510 | 70 | 160-4 | 380 | ||
250-500B | 470 | 60 | 132-4 | 380 | ||
250-500C | 430 | 50 | 110-4 | 380 | ||
300-250 | 720 | 20 | 55-4 | 380 | ||
300-250A | 700 | 17 | 45-4 | 380 | ||
300-250B | 600 | 12.5 | 37-4 | 380 | ||
300-315 | 720 | 32 | 90-4 | 380 | ||
300-315A | 637 | 28 | 75-4 | 380 | ||
300-315B | 563 | 24 | 55-4 | 380 | ||
300-400 | 720 | 50 | 132-4 | 380 | ||
300-400A | 662 | 44 | 110-4 | 380 | ||
300-400B | 609 | 38 | 90-4 | 380 | ||
300-400C | 536 | 31 | 75-4 | 380 | ||
300-500 | 720 | 80 | 250-4 | 380 | ||
300-500A | 675 | 70 | 200-4 | 380 | ||
300-500B | 625 | 60 | 160-4 | 380 | ||
300-500C | 570 | 50 | 110-4 | 380 | ||
350-250 | 1200 | 20 | 90-4 | 380 | ||
350-250A | 1080 | 16 | 75-4 | 380 | ||
350-315 | 1200 | 32 | 160-4 | 380 | ||
350-315A | 1120 | 28 | 132-4 | 380 | ||
350-315B | 1040 | 24 | 110-4 | 380 | ||
350-400 | 1200 | 50 | 250-4 | 380 | ||
350-400A | 1120 | 44 | 220-4 | 380 | ||
350-400B | 1040 | 38 | 200-4 | 380 | ||
350-400C | 905 | 31 | 160-4 | 380 |
技术参数
扬程H:5—130m
转速n:970—2900r/min
温度:≤120°C
口径:φ15—φ500mm
维修保养
1、定期检査泵和电机,更换易损零件。
2、经常注意对轴承箱加注优质钙基润滑脂,以保证轴承良好的润滑状态。
3、长期停机不使用吋,除将泵内腐蚀性液体放净外,更应注意各部件及泵内流道的清洗干净,并切断电源。
4、泵严禁空载运转。
5、介质中如含有固体颗粒时,应在泵入口处须加过滤器。
安装尺寸
水泵安装是否合理,对泵的正常运行与使用寿命有极其重要影响,故安装和校正必须仔细进行。 2、对照安装尺寸预埋好底脚螺栓,做好混凝土基础工作。 3、待基础水泥凝固后,将泵安装基础上,应用水平仪检査水泵和电机轴的水平情況,如不水平,应用垫铁调正直至水平,调妥后拧紧底脚螺母。
